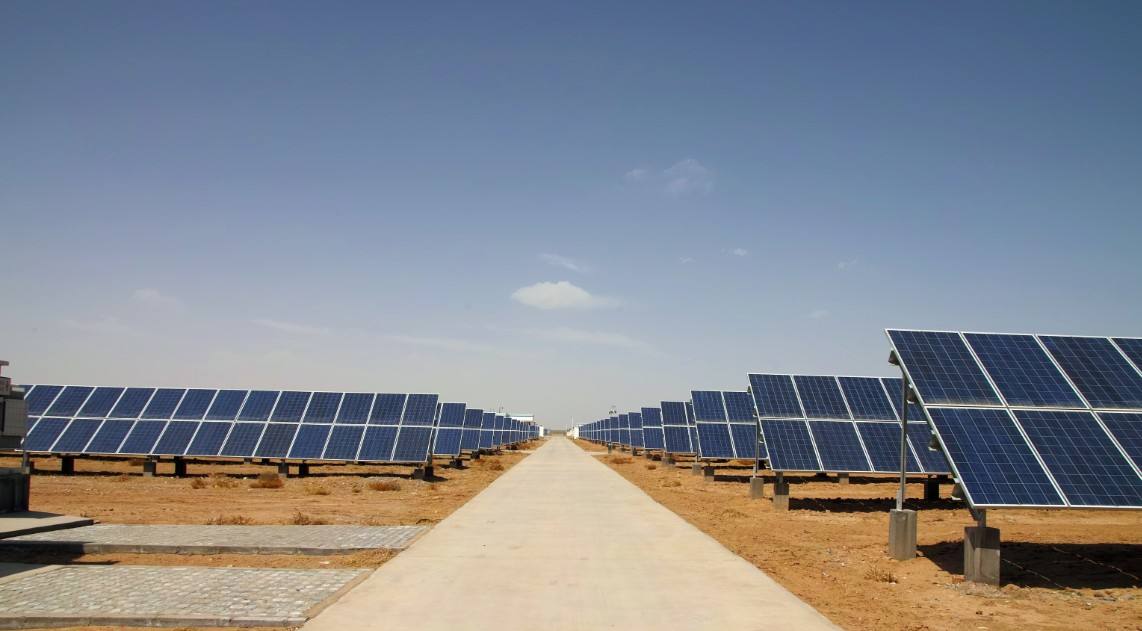

1. 光伏组件和光伏系统 Solar module and PV system

伴随着人们对环保意识的增强，对光伏产品的需求越来越广，我们可以提供从单个光伏组件到大型光伏电站多种方案和产品，以达到客户的需求。

Shanghai Clear Sky is a provider of photovoltaic projects. The solar modules are populous with the environmental protection, we can provide the solar module and inverter to meet the customer’s requirement.

Solar Module		Maximum power in STC (W)
Solar Module		Polycrystalline				Monocrystalline
Standard Series	72 cell series	340	335	330	325	350	345	340	335
Standard Series	60 cell series	280	275	270	265	290	285	280	275
Performance Series (PERC)	72 cell series	-	-	-	-	375	365	360	355
Performance Series (PERC)	60 cell series	-	-	-	-	310	305	300	295

Grid Tied PV Inverter
String Inverter
Three Phase(KW)													Single Phase(KW)
85	75		60	50		30	20		15	12		10	5		4	3.6	3	2	1.5		1
Central Inverter(KW)
1500		1260			1000			850			800			700			630			500

2. 金属硅 Silicon Metal

金属硅是用来生产多种产品的原材料，我们拥有自己的生产工厂，采用高品质的硅石来生产金属硅，生产出的产品具有品质高，成本具有竞争力等特点。

This high-purity silicon metal is used by many industries. In the chemical industry it is used for producing silicon compounds as well as silicon wafers used in photovoltaic solar cells and electronic semiconductors. And aluminum manufacturers use it to improve the already useful properties of aluminum. When used with aluminum, silicon improves its castability, hardness and strength.

Our plant can produce the silicon metal with the higher quality and lower cost product using the higher quality silica.

1- Metallurgical grade silicon metal specification Typical sizing : 10 - 100 mm (90% minimum) / Analysis :

Grade	Si	Fe	Al	Ca	P
	Min	Max	max	max	ppm
553	98.5%	0.50%	0.50%	0.30%	-
441	99%	0.40%	0.40%	0.10%	-
3303	99%	0.30%	0.30%	0.03%	25/40/60
2202	99%	0.20%	0.20%	0.02%	25/40/60
1101	99.2%	0.10%	0.10%	0.01%	25
Off grade	96%	2.00%	1.00%	1.00%

2- Chemical grade silicon metal specification

Typical sizing: 2 – 25 mm / Analysis:

Grade	Si	Fe	Al	Ca	P	Ti	Ni	Mn
	min	Max	max	max	Ppm	Ppm	Ppm	Ppm
	min	Max	max	max	max	max	max	max
521	99%	0.50%	0.15~0.25%	0.10%	50	500	50	300
5203	99%	0.50%	0.15~0.25%	0.03%	-	-	-	-
421	99%	0.40%	0.14~0.19%	0.10%	50	500	50	300
411	99%	0.40%	0.10%	0.10%	50	-	-	-

3- Silicon Metal Powder specification

Size	Fe	Al	Ca	P
mm/mesh	max.	max.	max.	ppm max
20~60 mesh	0.02%	0.02%	0.02%	20%
60~200 mesh	0.01%	0.01%	0.01%	20%
0.20~1mm mesh	0.20%	0.20%	0.20%	30%
42~325 mesh	0.30%	0.30%	0.30%	-
-325 mesh	0.40%	0.40%	0.50%	-

4- Micro silica Powder

For Construction: micro silica can be well-performed in construction application, which can improve the bond strength and abrasion resistance, reduce permeability, and protect reinforcing steel from corrosion.

For Refractory: It can improve the fluidity of refractory casting materials, reduce water consumption, improve the compactness, temperature strength and thermal shock resistance.

For Fertilizer: microsilica can also be well-performed in other special applications, such as fertilizer.

Due to its unique chemical and physical properties, micro-silica has become a versatile mineral admixture for a multitude of applications.

	SiO2	CaO	Al2O3	Fe2O3	Other	Bulk density
Micro silica	90-98%	0.2 – 0.7%	0.4 – 0.9%	1 - 2%	2 - 3%	550 - 650Kg/m3

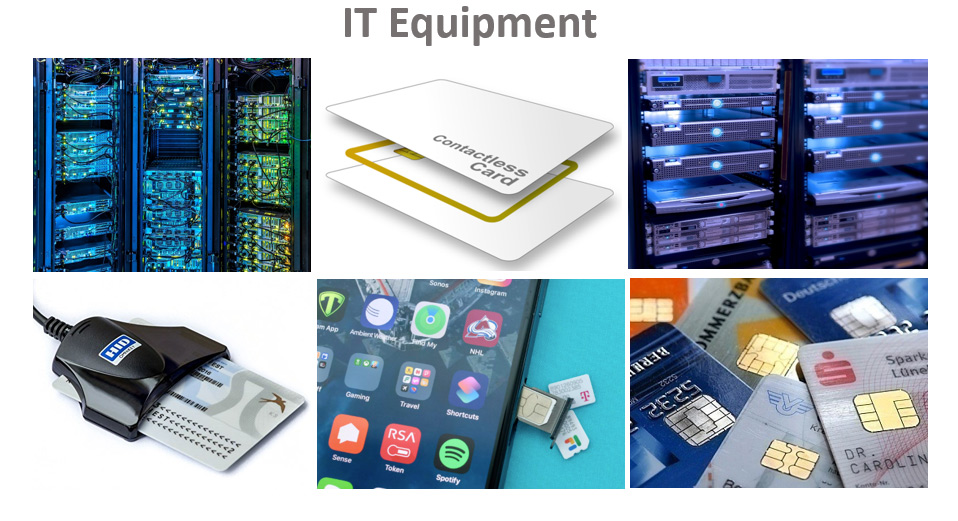

3.IT 设备 IT Equipment

What we offer in IT Equipment

我们能够提供的IT 设备

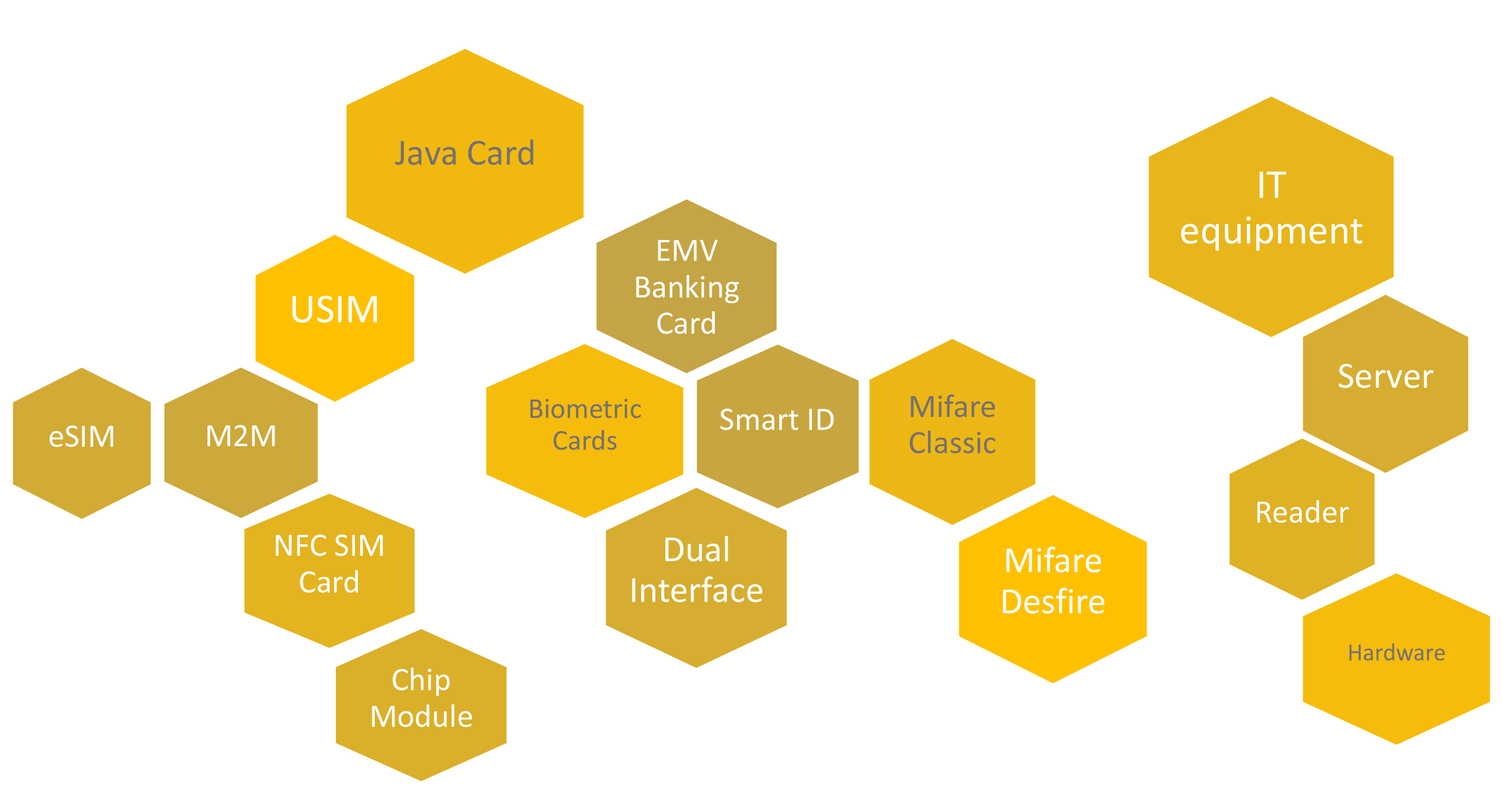

Aside from Server, Reader & other IT hardware, we provide Contact & Contactless, Hybrid & Dual Interface Java Smart Cards:

除了服务器，读卡器和其它的IT硬件，我们能提供接触式和非接触式，混合和双面Java智能卡击

• All SIM Card Technologies

• 全部的SIM卡技术

• eSIM & machine to machine technology

• eSIM以及设备到设备的技术

• Smart ID cards in various security levels & memory

• 各种安全要求和储存智能ID卡

• EMV Banking cards

• EMV银行卡

• Biometric Cards

• 计量生物卡

• Chip Module

• 芯片模块

• Solutions for Smart Cards

• 智能卡解决方案
